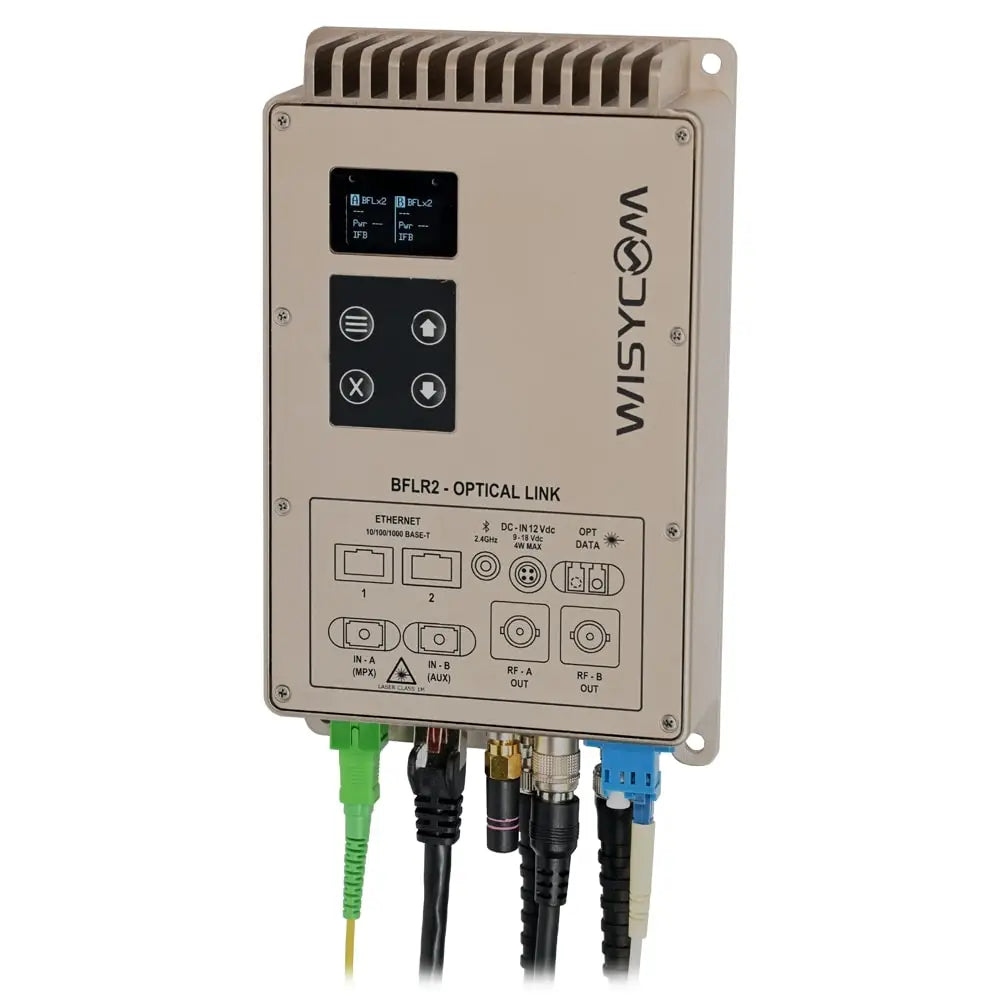

Wisycom-BFL-R2-Double RF over Fibre module BFL-R2

The Wisycom BFL-R2 dual-photodiode RF over fibre module converts optical signals to RF with dual-band flexibility. Operate in IFB mode to transmit low-power IEM signals across extended distances, or ANT mode to receive remote antenna feeds. Spanning 170–1260 MHz, this module delivers wide RF coverage with straightforward OLED configuration and four-button navigation. Manage settings via Ethernet, Bluetooth, or LoRa connectivity. Accepts 9–18 Vdc input and includes dual RGB status LEDs. Choose between point-to-point M0 configuration for independent dual RF-over-fibre links or M2 multiplexed operation combining two optical wavelengths (1510nm + 1550nm) onto a single fibre. Both variants feature integrated 1310nm-TX/1550nm-RX SFP transceivers and include PSP15V1A2-H power supply.
